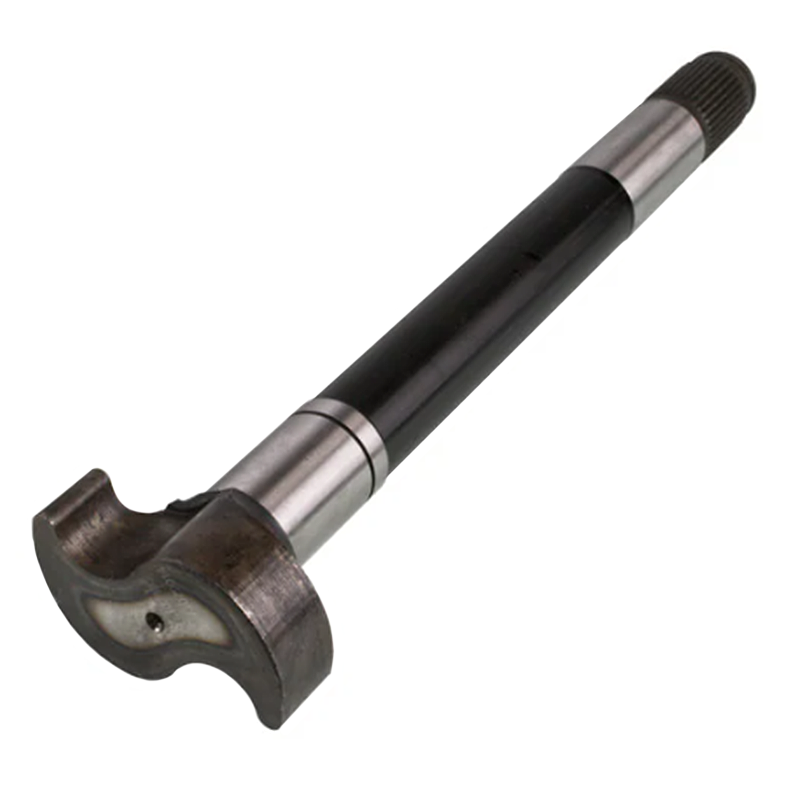

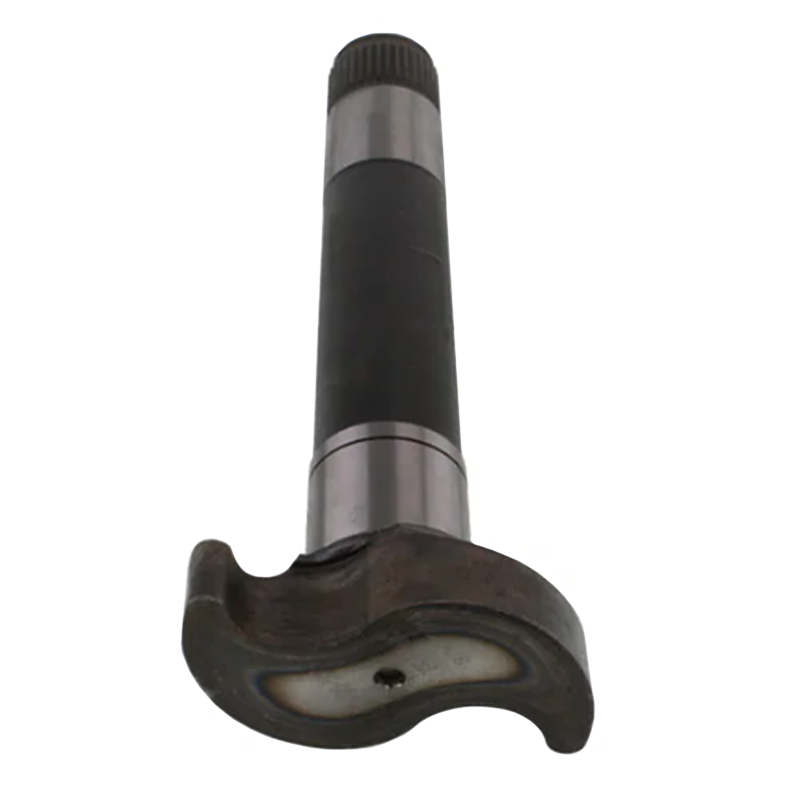

Sirco Left Handed 16-1/8 in, 37 Spline Camshaft

$26.98

SKU: C563L Categories: ,

S-Cam LH 16-1/8 in x 1-5/8 in x 1-5/8 in 37 Spline

Available on backorder

The C563L is a left-hand S-camshaft designed for heavy-duty Fruehauf/Pro-par 16½″ trailer drum brake systems. Built from forged steel, it features a 28-spline 1 5/8″ diameter shaft, induction-hardened cam head, and dual snap-ring grooves for secure installation. With OEM-grade precision and durability, it’s engineered for reliable braking in demanding fleet environments.

Weight 12.5000 lbs
Dimensions 22 × 5 × 3 in
Brand

Sirco
Application

Rotation

Overall Length

Spline Count

Spline Diameter

Camshaft Head

Journal Diameter

Journal Length

Head Diameter

Head Thickness

Length (A)

Brake Series Shoe Type

Material

Mounting

Dual snap ring grooves on journal
Slack Adjuster Fit

Cross Reference

04‑811622, 121.371604.01, 1563P, 17-621, 54020L, A8153, AXA‑0420‑1, CS41528, CS1563, E‑1563, FP1563L, H10528L, L-838, M‑563L, R607011, WA05‑5003
