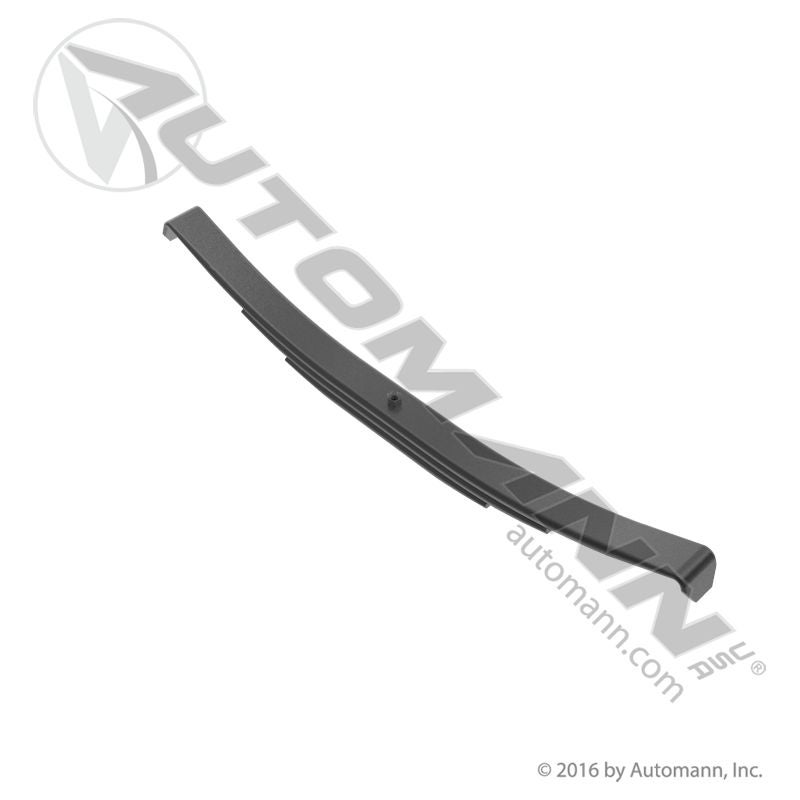

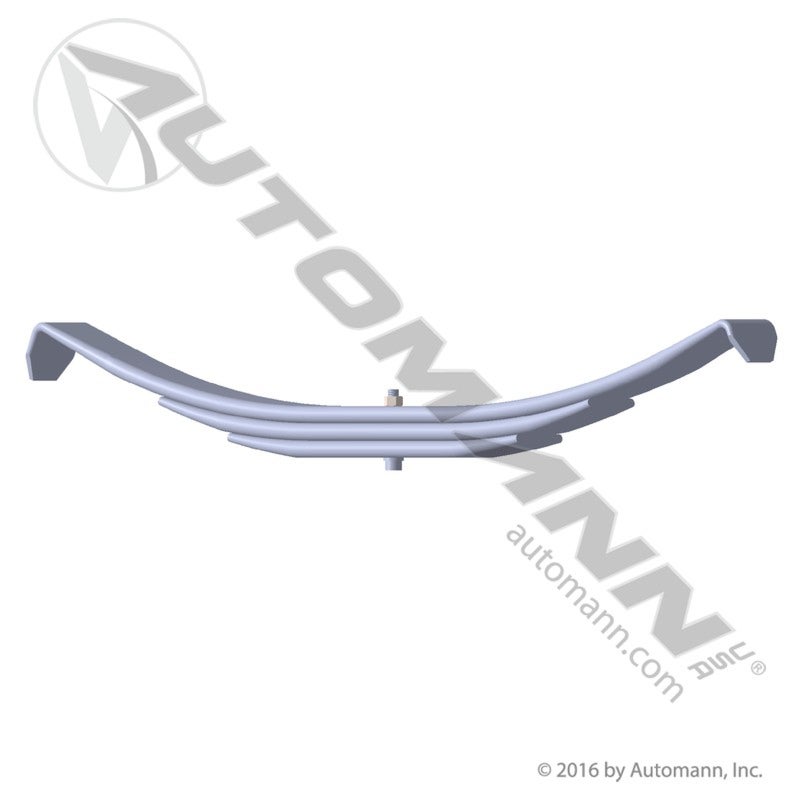

Hi arch hutch leaf spring

$133.26

SKU: TRA2726 Category:

Hi arch hutch leaf spring (3-leaf trailer spring), 3 in wide with 6 in arch and 11,200 capacity. S.E. 22-1/2 in; L.E. 23-5/8 in; HK-1/HK-1.

The Hi arch hutch leaf spring is a 3-leaf trailer spring designed for heavy-duty trailer suspension service. Built in a 3 in width with a 6 in arch (C), it provides a rated capacity of 11,200 for demanding fleet applications.

  • Spring type: Trailer spring
  • Number of leaves: 3
  • Width: 3 in
  • Dimensions: S.E. (A) 22-1/2 in; L.E. (B) 23-5/8 in
  • Eye type: HK-1/HK-1 (bushing A end HK-1; bushing B end HK-1)
  • Center bolt: 1/2 x 3-1/4; center bolt head: 3/4D x 7/16H
  • Reference/OEM #: SP0354
  • Weight: 53 lbs

Applications listed include Binkley, Great Dane, Hutch, and Watson and Chalin trailer suspensions.

Note: Parcel shipment is not recommended for this item.

Weight 53 lbs
Dimensions 46.50 × 6.89 × 3.00 in
