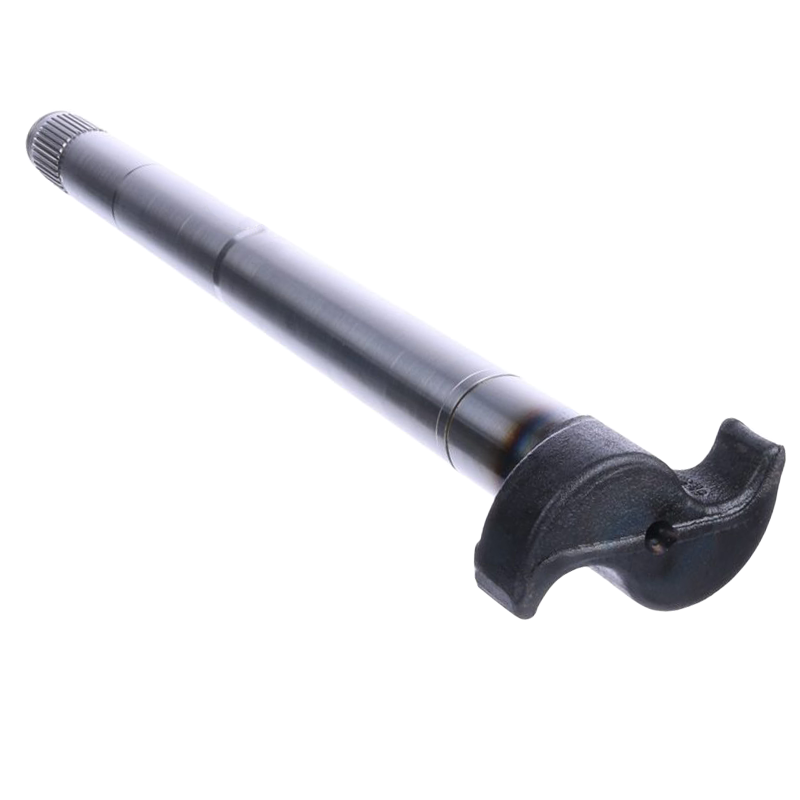

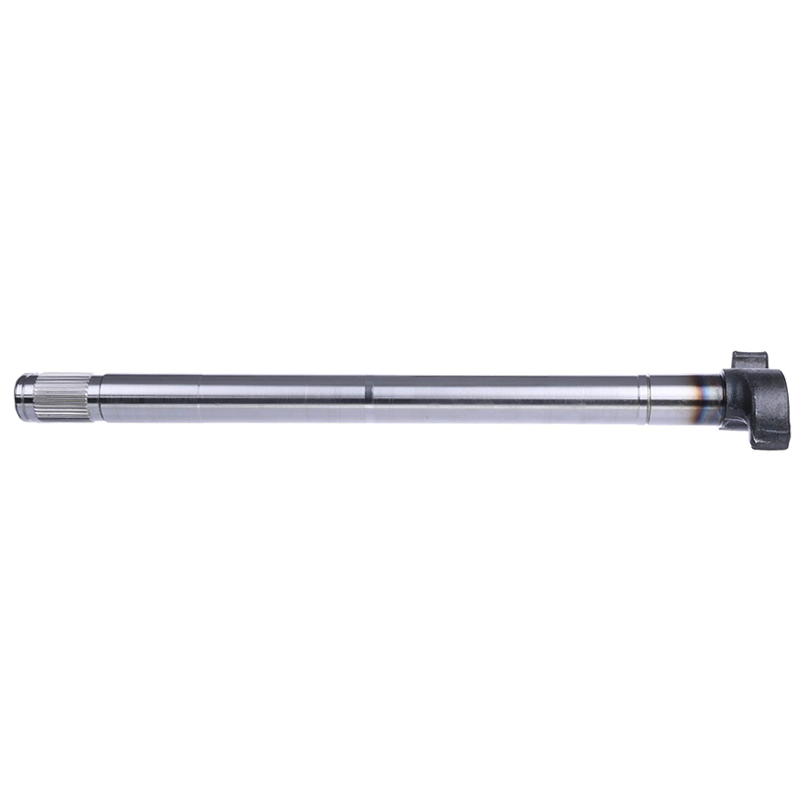

Meritor Right Handed 21-1/8 in, 37 Spline Camshaft

$38.69

SKU: R607019 Categories: ,

S-Cam RH 21-1/8 in x 1-5/8 in x 1-1/2 in 37 Spline

The R607019 is a right-hand S-camshaft specifically designed for 16½″ Fruehauf/Pro‑Par and Hendrickson Intraax/HXS trailer drum brake systems. It features a 37-spline, 1⅝″ journal, 1⅜″ hardened cam head, and an overall effective length of 21⅛″. Precision-forged and induction-hardened for durability in heavy-duty applications, it’s cross-referenced across numerous OEM and aftermarket brands.

Weight 14.8000 lbs
Dimensions 27 × 5 × 3 in
Brand

Meritor
Application

Rotation

Overall Length

Spline Count

Spline Diameter

Camshaft Head

Journal Diameter

Journal Length

Head Diameter

Head Thickness

Length (A)

Brake Series Shoe Type

Material

Mounting

Dual snap ring grooves on journal
Slack Adjuster Fit

Cross Reference

04‑812121, 121.372104.02, 17‑622, AXA‑0420‑4, C100R, CS41513, H10513R, L‑1023, M‑566R, WA05‑5004
