Econoride Triple Concoluted Air Spring, Loads 5400 lbs to 6800 lbs

$136.55

SKU: 566.ER7995 Categories: ,

Available on backorder

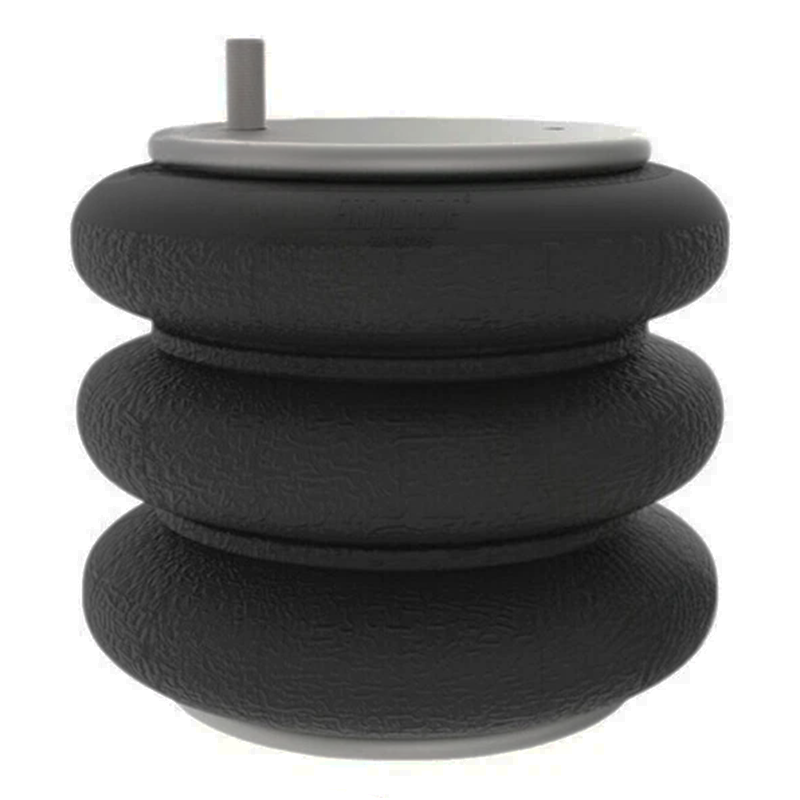

Econoride Triple Convoluted Air Spring

Weight 15.19 lbs
Dimensions 12 × 12 × 12 in
Brand

Automann
Size

12/12/12 in
Bead Plate Diameter Bottom

9 in
Bead Plate Diameter Top

5.50 in
Convoluted Style

Triple
Stud Configuration Bottom

2
Stud Configuration Top

2
Load @ 80 PSI

5400 lbs
Load @ 100 PSI

6800 lbs
Bottom Plate Type

Steel
Cross Reference

3B12-315, 64573, AS-0048-1F, FT330-29547
