82 Series PTO

Original price was: $3,085.71.Current price is: $2,795.36.

SKU: 828F-E7013-T2CX Category:

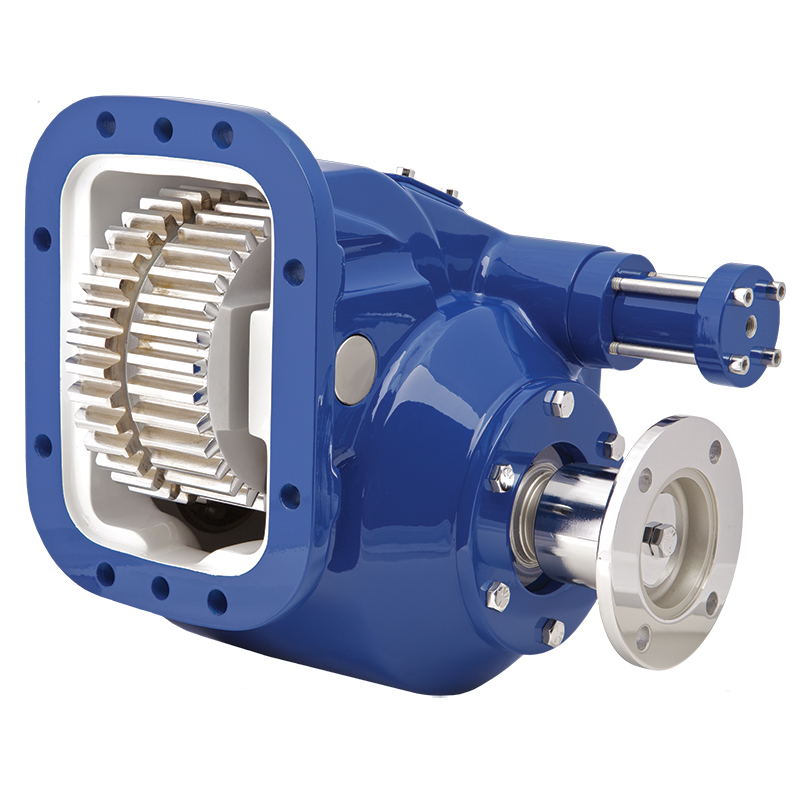

The Muncie 82 Series is a heavy-duty, 8-bolt power take-off designed for driving mechanical equipment and high volume or multiple section hydraulic pumps with high-torque requirements. The 82 Series features a cast iron housing, lever or air shift and optional single or dual hydraulic pump mounts.

Key Features

  • Up to 500 lbs.ft. torque capacity and 95 H.P. at 1,000 RPM: Power to drive high-volume pumps, high CFM blowers
  • Double-acting air shift: Positive engagement and disengagement
  • Two companion flange output types: Versatility for remote pump and mechanical drives
  • Seven direct mount pump options: S.A.E. “B,” “BB,” “C,” “D;” and DIN 5462 mounts
  • Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
  • Weight: 85 lbs.
  • Housing construction: Cast iron
  • Speed ratios: 8
  • Output shaft options: 9
  • Rotatable pump flange: Standard
  • Assembly arrangements: 2
Weight 91 lbs
